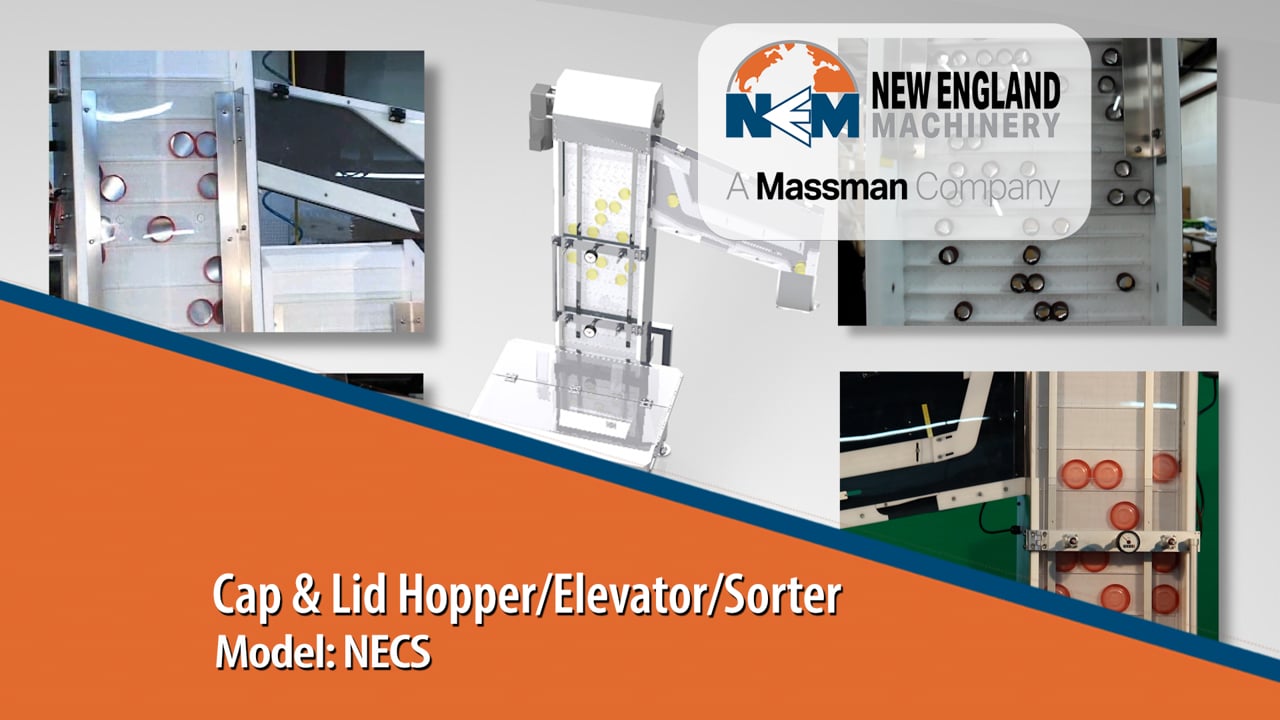

Cap and Lid Sorter System

Model Name: NECS

New England Machinery’s Cap and Lid Sorter sorts and feeds caps to a capper via a cap chute. The NECS uses either a sorter bowl or hopper elevator to sort the caps. The hopper elevator method comes in both single and dual belt systems. The single belt can be adjusted for several cap sizes. The dual belt allows a wide variety of cap sizes without a long, labor-intensive belt replacement changeover.

Easy to use: The NECS design is operator-friendly. The hopper is positioned low for easy filling and cap level monitoring. The high floor clearance gives you easy access for quick cleaning. Slower or faster speeds can be obtained through VFD variable speed controls.


Request a Quote

NECS Benefits

  • Operator friendly with low hopper position for easy filling and cap level monitoring
  • High floor clearance provides easy access for quick cleaning
  • Various speed levels can be obtained through VFD variable speed controls
  • Simple adjustment when switching to a new cap size
  • Standard stainless steel bin and elevator construction provides components with a clean non-painted contact surfaces containers are transported

NECS Features

  • Anodized aluminum and 304 stainless steel construction
  • Welded and polished stainless steel frames
  • Designed for feeding caps, parts, plugs, tips, lids, etc.
  • All contact surfaces 304 stainless steel or FDA compliant plastic
  • Photo electric monitoring and activation to control product
  • Clean, non-painted, non-marring surfaces
  • Clear polycarbonate guarding
  • High floor clearance
  • UL listed components
  • 100% fabricated and built in the USA

Electrical Features

  • NEMA-12 Electrical
  • 208-240VAC, three phase, 60Hz
  • AC variable frequency drives

Pneumatic Features

  • 5-10 cfm. @80 PSI. clean, dry, oil-free compressed air

Contact Us for a Quote on this Machine
