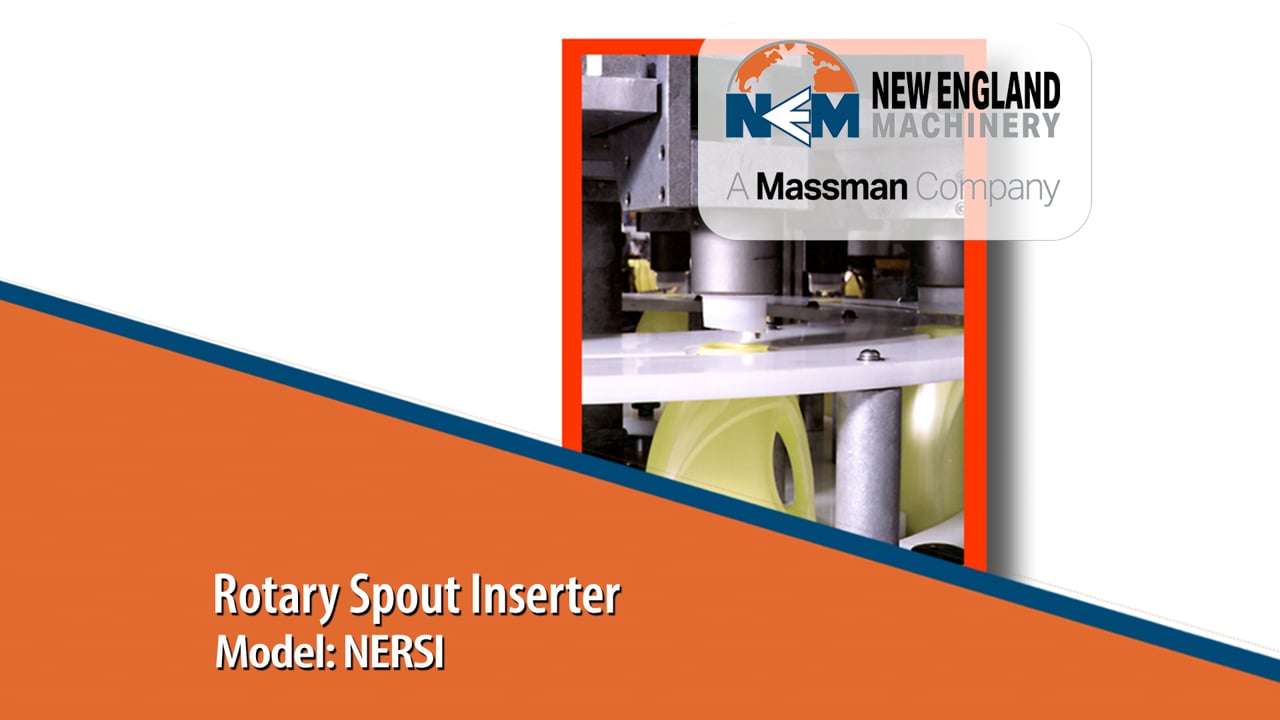

Rotary Spout Inserter System

Model name: NERSI

The New England Machinery, Inc. Rotary Spout Inserter sorts, orients, and positively inserts spouts into filled or empty containers. This rotary model is available in a variety of rotary heads to meet production line speed requirements.

The NERSI is a variation on the well-proven NEW England Machinery Rotary Chuck Capper (NERCC). On the NERSI, rather than caps that are handled and placed, spouts are oriented and inserted. No rotary torque is required. The spout mandrel travels on a cam, which ensures every spout is inserted fully and properly oriented before it is released.

Request a Quote

NERSI Benefits

  • Accurately aligned placement of pour spouts +/-3°
  • No rotary torque is required
  • Every spout is inserted fully and properly oriented before it is released
  • Smooth, safe spout handling
  • Easy changeover
  • Capable of inserting spout in filled or empty containers
  • Capable of extremely high speeds
  • High throughput utilizing minimum floor space
  • High floor clearance
  • Direct entrance and discharge to customer’s constant speed, continuous motion, non-stopping conveyor

NERSI Features

  • Anodized aluminum and 304 stainless steel construction
  • Welded and polished stainless steel frames
  • Clean, non-painted, non-marring surfaces
  • Soft start and stop features
  • Electric push button height control
  • Stainless steel covered lower base frame
  • Clear polycarbonate guarding
  • Zero access entrance and exit tunnel
  • Jog switch with 10’ cord
  • Adjustable discharge height 36”+/- 2”
  • Infeed and backlog photo eyes
  • Low air safety shutdown
  • UL listed components
  • 100% fabricated and built in the USA

Electrical Features

  • NEMA-12 Electrical
  • 208-240VAC, three phase, 60Hz, 30A
  • Keyless safety Interlocks

Pneumatic Features

  • 5-10 cfm. @80 PSI. clean, dry, oil-free compressed air
