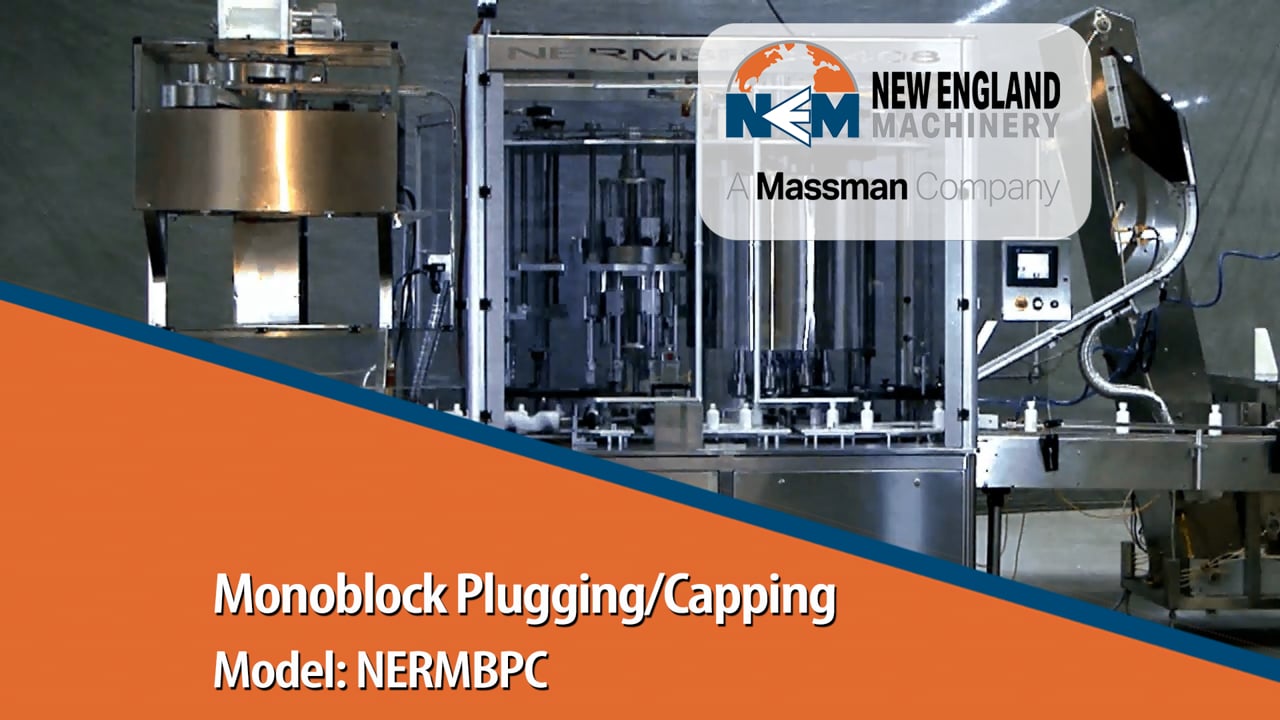

Monoblock Plugger/Capper

Model name: NERMBPC

Enjoy all the benefits of a NEM Plugger and Capper in one space saving footprint.

New England Machinery’s Rotary Monoblock Plugger/Capper places plugs or fitments securely into containers then a screw cap is applied. NEM’s electronic torque control provides repeatable applied torque.


Request a Quote

Plugger/Capper Monoblock System Benefits

  • Save valuable floor space – plug and cap within the same frame
  • Save time on set up and changeover with minimum tools
  • Durable and high speed capability
  • Consistent and accurate applied torque
  • Can be configured with numerous heads and accommodates various container sizes and speeds to meet your requirements
  • Can cap continuous thread, child resistant, sports style, tamper evident and more styles
  • Available in a Servo option
  • 5-10 cfm. @80 PSI. clean, dry, oil-free compressed air

Plugger/Capper Monoblock System Features

  • Anodized aluminum and stainless steel construction
  • Welded and polished stainless steel frames
  • Non-marring urethane lines or serrated collets
  • Change parts constructed of engineered plastic
  • Electric push button height control
  • Stainless steel covered lower base frame
  • Electronic torque control for applied torque
  • Contoured pneumatic grippers for round containers
  • Soft start and stop features
  • Clear polycarbonate guarding
  • Zero access entrance and exit tunnels
  • Infeed and backlog photo eyes
  • High floor clearance
  • Low air safety shutdown
  • Jog switch with 10’ cord
  • UL listed components
  • 100% fabricated and built in the USA

Electrical Features

  • NEMA-12 Electrical
  • Dual motor drive system
  • 208-240VAC, three phase, 50/60Hz, 40 A
  • Backlog photo eye with auto stop and restart
  • Allen-Bradley® PLC (except with Servo option)
  • TEFC (totally enclosed fan cooled) AC motors
  • AC variable frequency drives

Pneumatic Features

  • 5-10 cfm. @80 PSI. clean, dry, oil-free compressed air

Add the Servo Motor Option

The closed loop system gives feedback to the controller, allowing the operator to use the information in making decisions regarding the proper setting to achieve their desired applied torques.

Servo Motor Benefits:

  • Supports the flexibility of recipe-driven format changes and torque control
  • Senses and rejects out of spec caps
  • Documents applied torque values

Contact Us for a Quote on this Machine
