Single Head Cappers

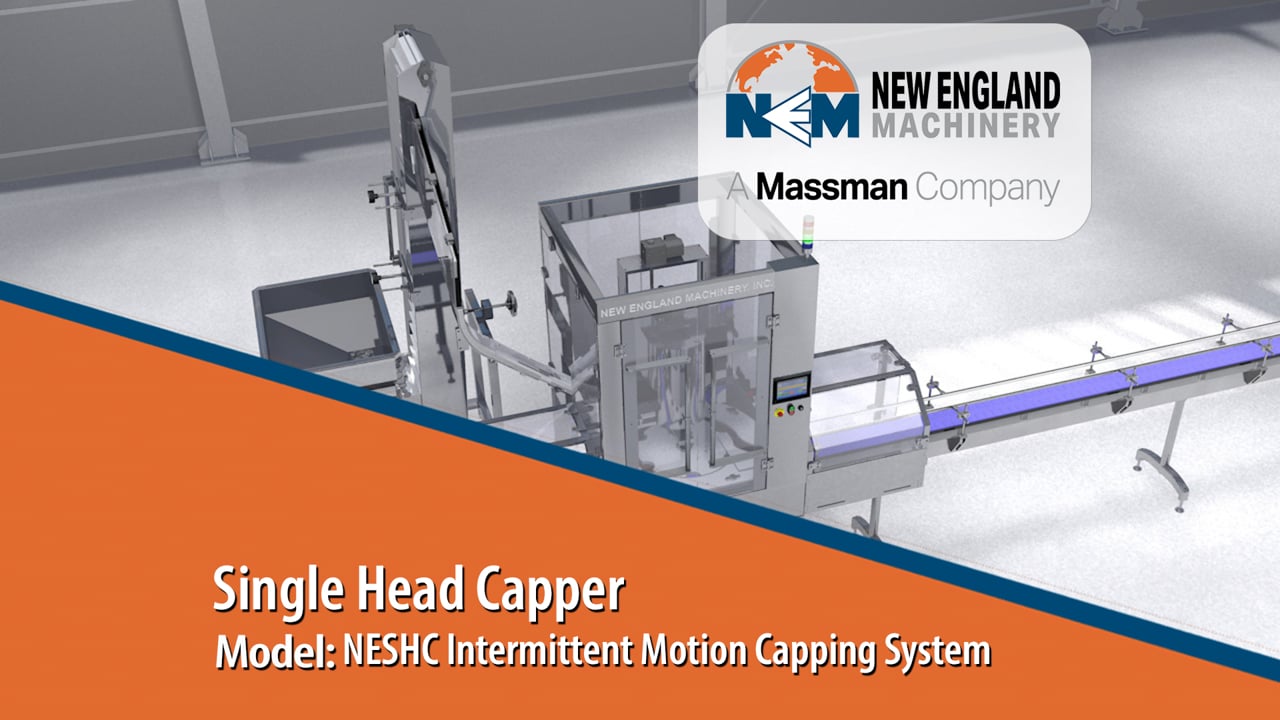

Model Name: NESHC

Accurate. Rapid Changeover. Dependable.

New England Machinery’s highly accurate Stand alone single Head Capper provides positive, straight and secure chuck cap application to a wide variety of caps and containers.
The New England Machinery, Inc. intermittent motion NESHC is designed to prevent cap or thread damage as a result of over-torquing. Our electronic torque control offers consistent and repeatable applied torque.

Request a Quote

NESHC Benefits

  • Accurate and repeatable applied torque
  • Smooth, safe cap handling – no burning or marring
  • Accurately aligned placement of cap
  • Freestanding unit – capable of being placed over an existing customer-supplied continuous motion conveyor
  • No clutch wear parts
  • Non-scuff chucks for gentle, positive grip, higher speeds and throughput
  • Easy access to all subassemblies for fast changeovers
  • Servo option ideal for pharmaceutical applications
  • Child resistant cap features are available
  • 5-10 cfm. @80 PSI. clean, dry, oil-free compressed air

NESHC Features

  • Anodized aluminum and 304 stainless steel construction
  • Welded and polished stainless steel frames
  • Stainless steel covered lower base frame
  • Non-marring urethane lined or serrated collets
  • Container change parts constructed of engineered plastic
  • Contoured pneumatic grippers for round containers
  • Clear polycarbonate guarding
  • Zero access exit tunnel
  • Soft start and stop features
  • Safety interlocks on all guard doors
  • High floor clearance
  • Infeed and backlog photo eyes
  • Jog switch with 10’ cord
  • Adjustable discharge height 36”+/- 2”
  • UL listed components
  • Low air safety shutdown
  • Fully automatic operation with backlog photoelectric control
  • 100% fabricated and built in the USA



Electrical Features

  • NEMA-12 Electrical
  • 208-240VAC, three phase, 60Hz, 20 A
  • TEFC (total enclosed fan cooled) AC motors
  • AC drives
  • Allen-Bradley® PLC
  • Keyless safety Interlocks

Pneumatic Features

  • 5-10 cfm. @80 PSI. clean, dry, oil-free compressed air

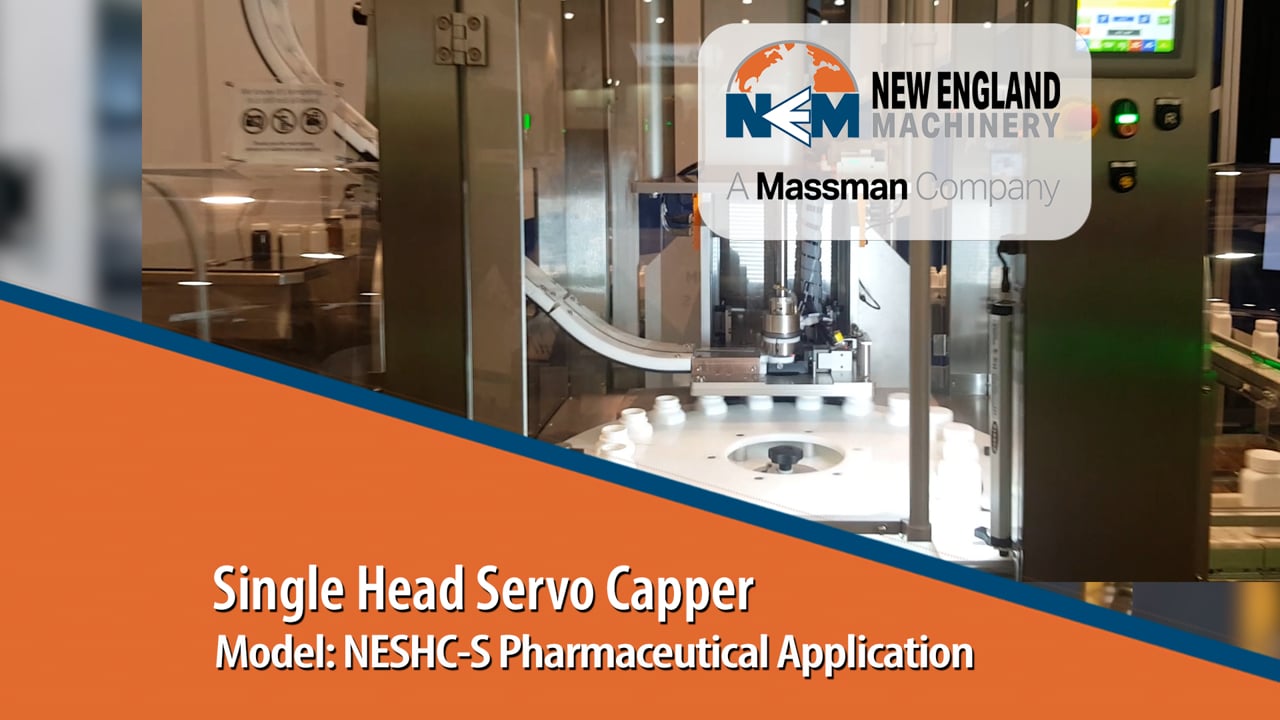

Add the Servo Motor Option NERSHC-S

Adding the servo motors allow positive applied torque control through recipe settings in the HMI. The closed loop system gives feedback to the controller. Cappers with the servo option utilize a programmable electric cam, which stores container and cap parameters in the controller memory. The values can then be recalled via recipe selection in the HMI.

Servo Motor Benefits:

  • Supports the flexibility of recipe-driven format changes and torque control through the HMI
  • Senses and rejects mis-torqued caps
  • Allows you to document applied torque values

All Servo motors are options, not on the base model.
