Rotary Secondary Orienter

Model name: NERO

Versatile. High Speed. Gentle Container Handling.

The New England Machinery, Inc. rotary orienter is the most versatile of NEM’s line of secondary orienters. Utilizing a rotary turret, the NERO can be configured with a various number of rotating spindle platens to meet the customer’s speed requirements.

The NERO sensing mechanism may consist of photoelectric sensors, proximity sensors, electromechanical sensors, UPC and 2Dscanners, color sensors or vision systems.

Request a Quote

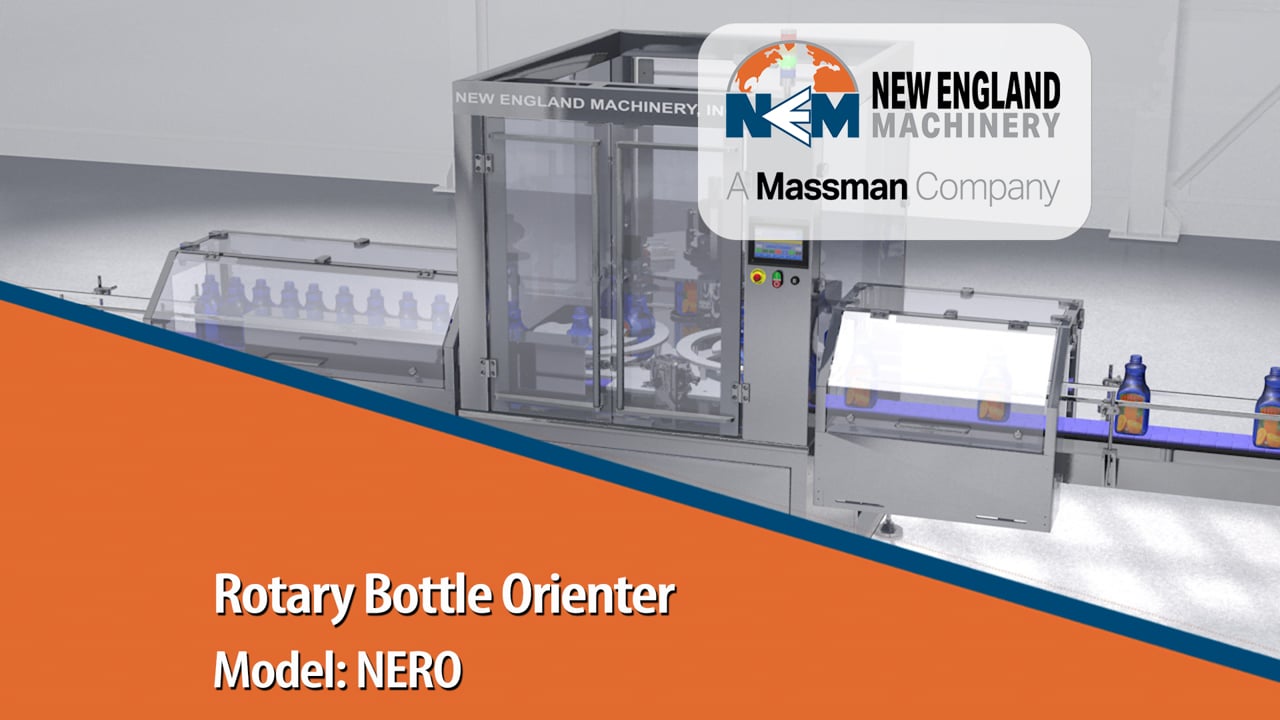

Rotary Bottle Orienter | High speed rotary orienter is the most versatile of NEM’s line of secondary orienters.

NERO Benefits

Capable of orienting empty or filled containers
Capable of orienting capped or uncapped containers
Orients at high speeds
Direct entrance discharge to customer’s constant speed, continuous motion conveyor
High floor clearance
Reads bottle shape, decoration, or UPC code and orients as required – 90, 180, or 270 degrees. Other orientation degrees available as an option.
Can be configured with a different number of orienting stations within a single turret

NERO Features

Anodized aluminum and 304 stainless steel construction
Welded and polished stainless steel frames
Clean, non-painted, non-marring surfaces
Clear polycarbonate guarding
Zero access entrance and exit tunnel
Stainless steel covered lower base frame
Soft start and stop features
Infeed and backlog photo eyes
Safety interlocks on all guard doors
Low air safety shutdown
Jog switch with 10’ cord
Adjustable discharge height 36”+/- 2”
UL listed components
100% fabricated and built in the USA

Electrical Features

NEMA-12 Electrical
208-240VAC, three phase, 60Hz, 15A
TEFC (totally enclosed fan cooled) AC motors
AC variable frequency drives
Keyless safety interlocks
Allen-Bradley® PLC

Pneumatic Features

5-10 cfm. @80 PSI. clean, dry, oil-free compressed air

Contact Us for a Quote on this Machine
