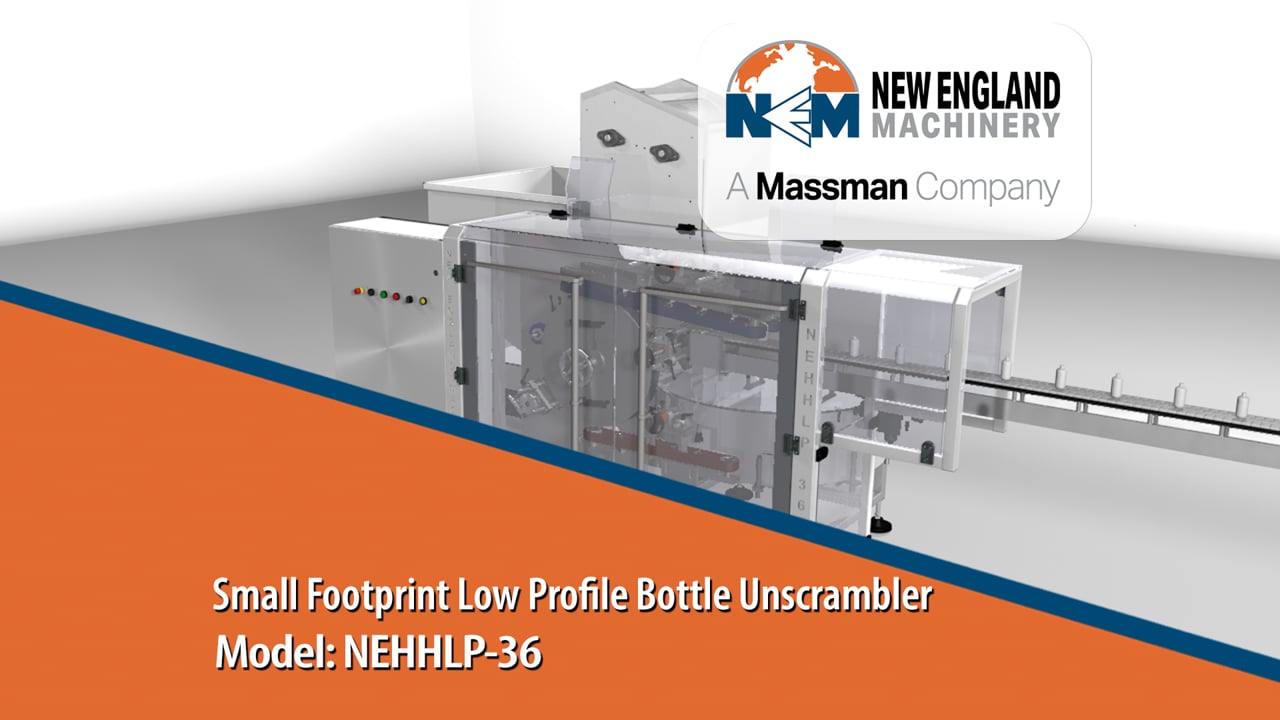

Low Profile Unscrambler

Model Name: NEHHLP

Versatile. Rapid Changeover. Gentle Container Handling.

The New England Machinery Low Profile Unscrambler is designed to handle a wide range of container shapes and sizes from straight-walled, tapered, round, oval, asymmetrical and even exotically shaped containers at the highest speeds in the industry. The low profile design allows easy access to bowl changeover and all sub-assemblies for operation and maintenance. Containers are fully protected through the workflow, minimizing the possibility of scuffing and damage.

Request a Quote

NEHHLP Benefits

  • User-friendly operation
  • Meets ergonomic demands with the low profile setup
  • Fast changeover through hand wheel adjustments
  • Unscrambles a wide range of containers from straight-walled, tapered, round, oval, asymmetrical and even exotically shaped containers at the highest speeds in the industry
  • Gentle decorated container handling with patented New England soft belt transfer system
  • Easy access to all sub-assemblies for fast, efficient maintenance
  • Responds automatically to changes in container supply and demand
  • Clear polycarbonate guard doors improve safety
  • Pharmaceutical and food grade standard options available
  • NEHHLP models can be monoblocked with NEM linear orienters

NEHHLP Features

  • Easy access to all components – speeding up changeover
  • Anodized aluminum and stainless steel construction
  • Welded and polished stainless steel frames
  • Zero access exit tunnel
  • Soft start and stop features
  • Jog switch with 10’ cord
  • Adjustable discharge height 36”+/- 2”
  • UL listed components
  • Low air safety shutdown
  • Fully automatic operation with backlog photoelectric control
  • 100% fabricated and built in the USA

Electrical Features

  • NEMA-12 Electrical
  • 208-240VAC, three phase, 50/60Hz, 30 A
  • Backlog photo eye with auto stop and restart
  • Allen-Bradley® AC variable frequency drives
  • Allen-Bradley® PLC
  • Keyless Safety Interlocks

Pneumatic Features

  • 5-15 cfm. @80 PSI. clean, dry, oil-free compressed air

Low Profile Unscrambler Data Sheet

Low Profile Unscrambler Data Sheet
Model: NEHHLP Turbo Option Monoblock with Orienter Option**
36 No Yes
48 No Yes
60 Yes Yes
72 Yes Yes
90 Yes Yes

** Depending on speed
