Vertical Feed Unscrambler

Model Name: NEVF

Compact. Rapid Changeover.

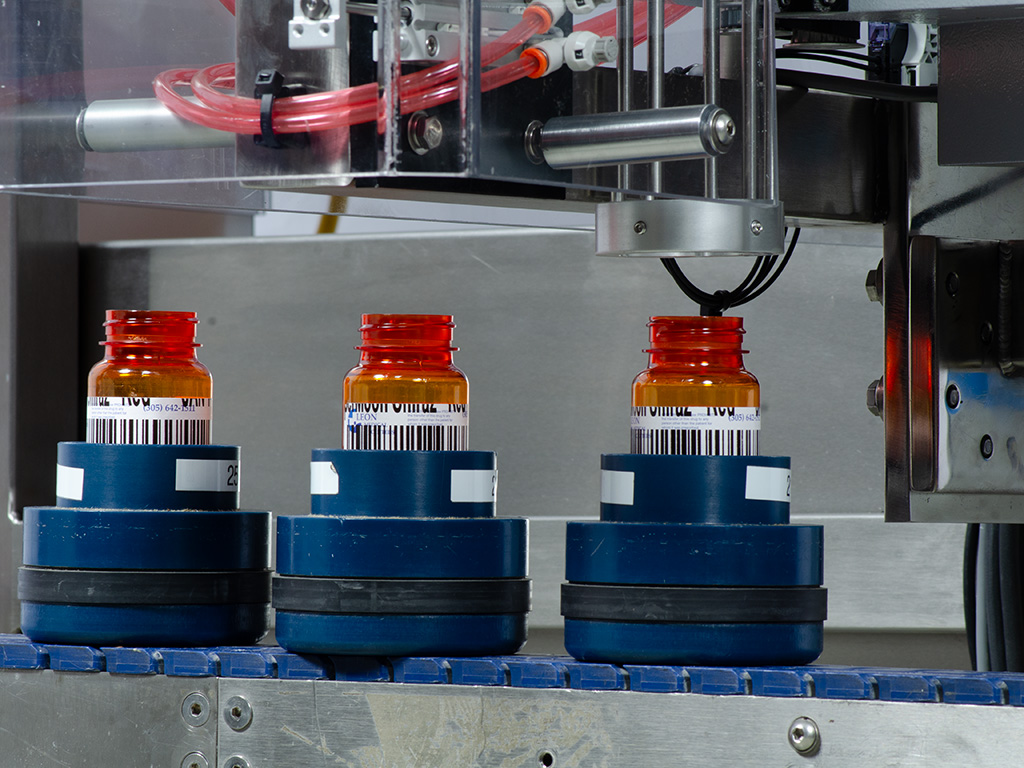

New England Machinery’s Vertical Feed Unscrambler offers belt-free unscrambling in a compact, efficient model. Our Vertical Feed Unscrambler is uniquely capable of handling small containers and stacking them in a base leading configuration, allowing them to be transferred into a pucking system or star wheel.

Request a Quote

NEVF Benefits

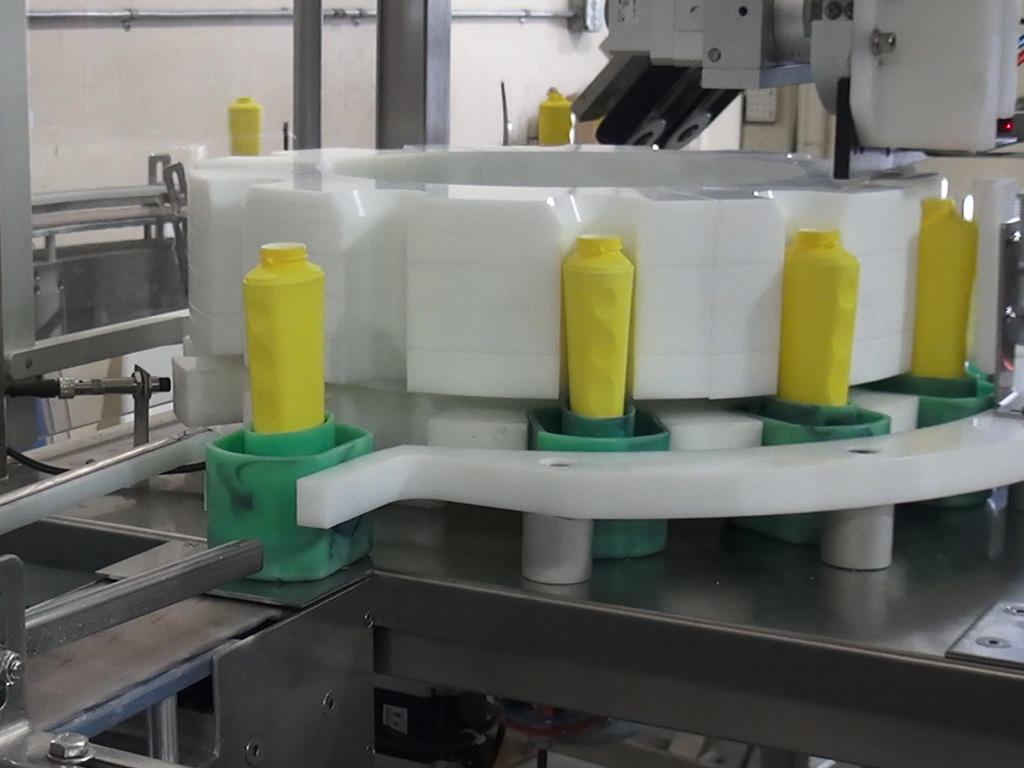

Direct discharge to your star wheel or pucking system
Ideal for pharmaceutical applications
Vertical orientation saves space and minimizes footprint
Integrates hopper elevator, sorting bowl and feeding system on one frame
Easy access to all subassemblies for fast changeovers
Offers easy access to components
Clear polycarbonate guard doors improve safety

NEVF Features

Anodized aluminum and stainless steel construction
Welded and polished stainless steel frames
Zero access exit tunnel
Soft start and stop features
Jog switch with 10’ cord
Adjustable discharge height 36”+/- 2”
UL listed components
Low air safety shutdown
Fully automatic operation with backlog photoelectric control
100% fabricated and built in the USA

Electrical Features

NEMA-12 Electrical
208-240VAC, three phase, 50/60Hz, 30 A
Allen-Bradley® AC variable frequency drives
Allen-Bradley® PLC
Keyless Safety Interlocks

Pneumatic Features

5-10 cfm. @80 PSI. clean, dry, oil-free compressed air
